Water tightness
550 Pa
88 · Yingxiu
Inward Window
A thermally broken single-sash window that opens inward for accessible operation and cleaning.
Custom colours can be matched to recognised international colour systems for project orders.
Four standard colours04 finishes
- Textured Black
- Deep Autumn Brown
- Light Ink Grey
- Soft Ivory
Product family
Windows
Opening
Inward opening
System
Thermal break
Applications
Residential

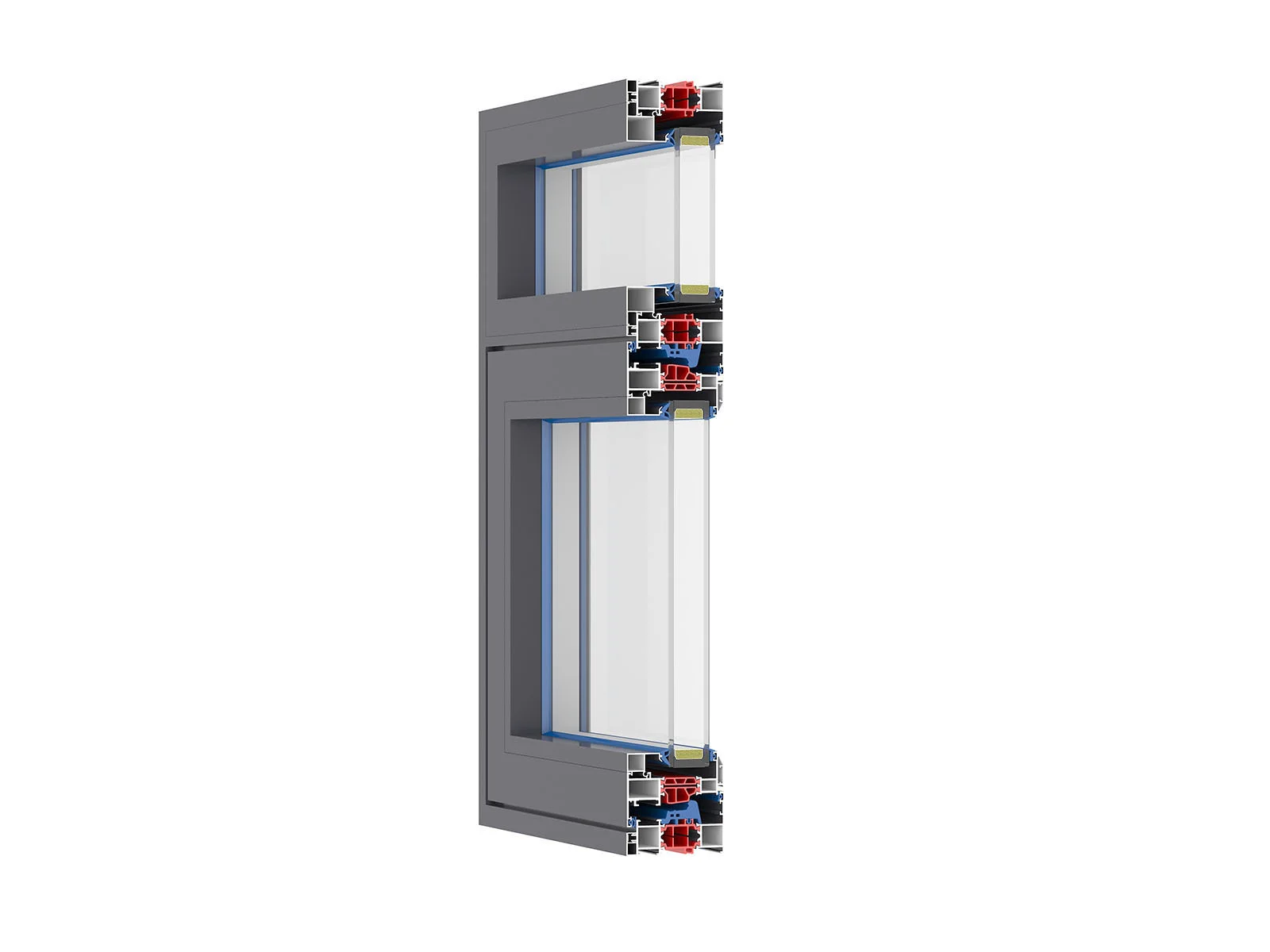

Technical summary
Product configuration and performance
- Aluminium grade
- 6063-T5 aluminium profile
- Profile wall thickness
- 1.8 mm
- Frame depth
- 88 mm
- Surface finish
- Powder coating
- Glass configuration
- 5 mm + 27A + 5 mm
Product highlights
88 Inward Window / Application 101 / 01
Air permeability
0.3 m³/(m·h)
Wind pressure resistance
5.0 kPa
Sound insulation
35 dB
U-factor
0.32 · catalogue value
Opening methods
Reference diagrams
Inward-opening and inward-tilting
Inward-opening
