Water tightness
700 Pa
109 · Chenxing
Awning Window
A thermally broken residential window with an integrated insect screen and outward-opening configurations.
Custom colours can be matched to recognised international colour systems for project orders.
Four standard colours04 finishes
- Textured Black
- Deep Autumn Brown
- Light Ink Grey
- Soft Ivory
Product family
Windows
Opening
Outward opening
System
Thermal break
Applications
Residential
Technical summary
Product configuration and performance
- Aluminium grade
- 6063-T5 aluminium profile
- Profile wall thickness
- 2.0 mm
- Frame depth
- 109 mm
- Surface finish
- Powder coating
- Glass configuration
- 5 mm + 20A + 5 mm
Product highlights

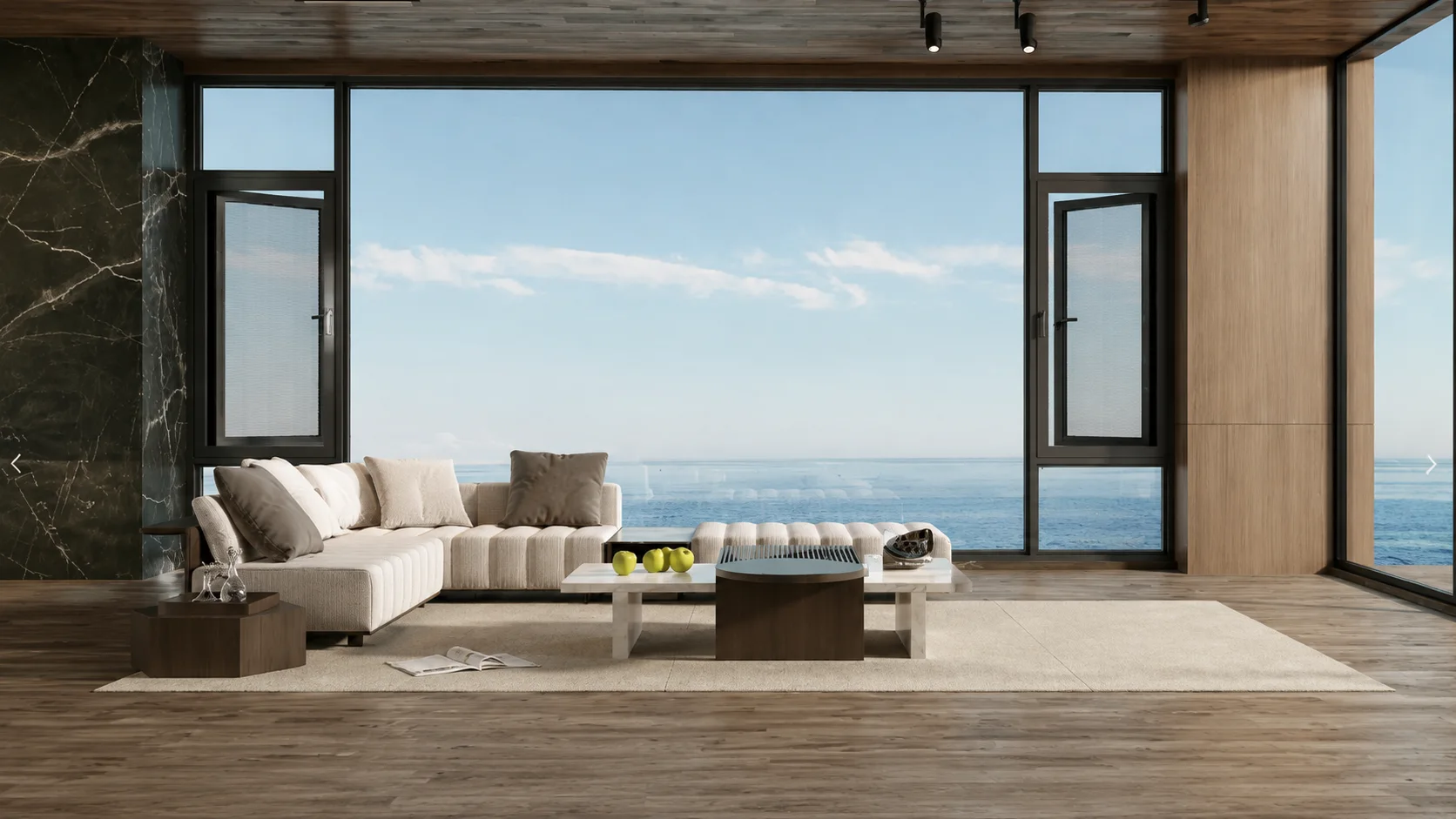

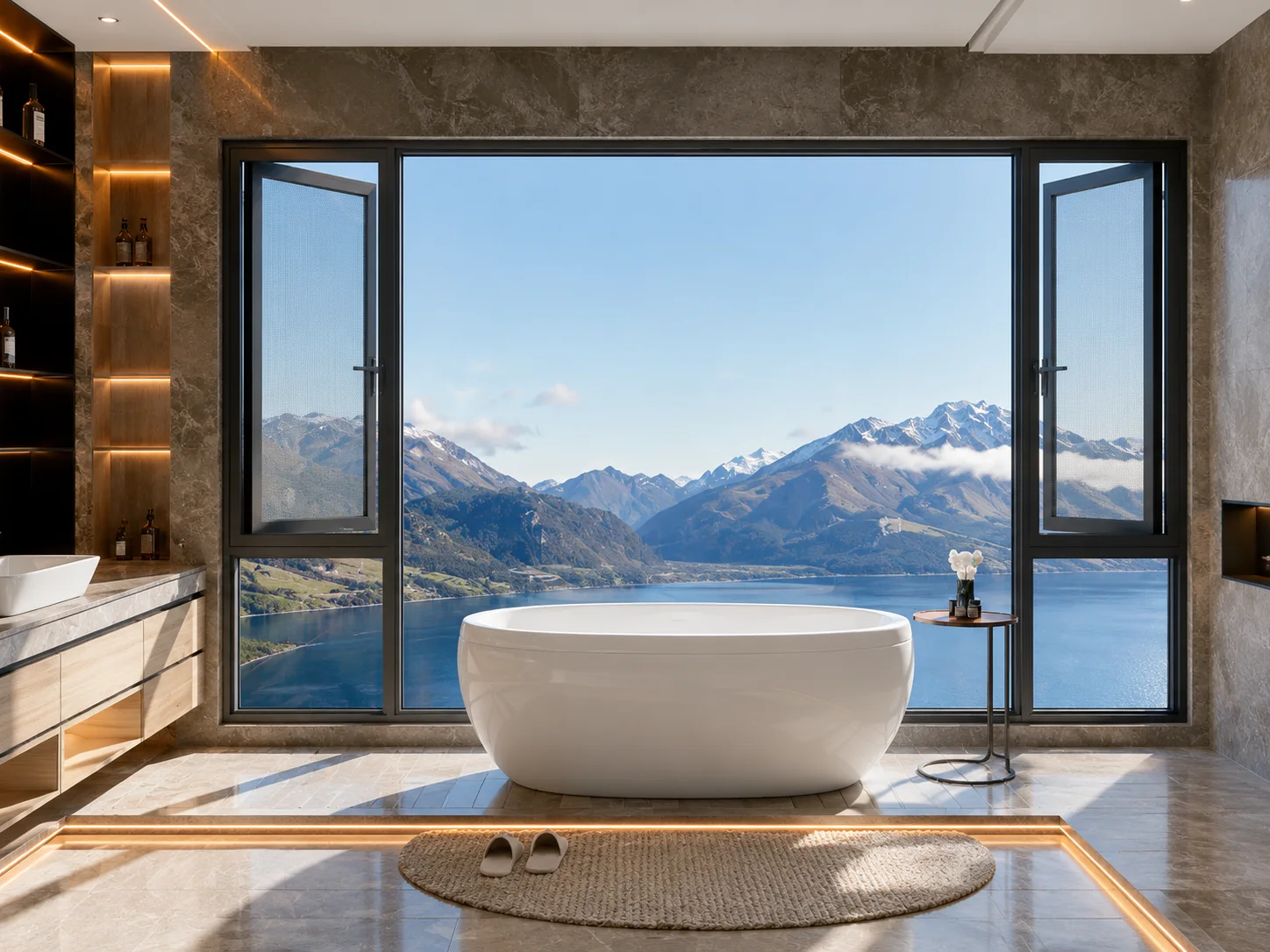

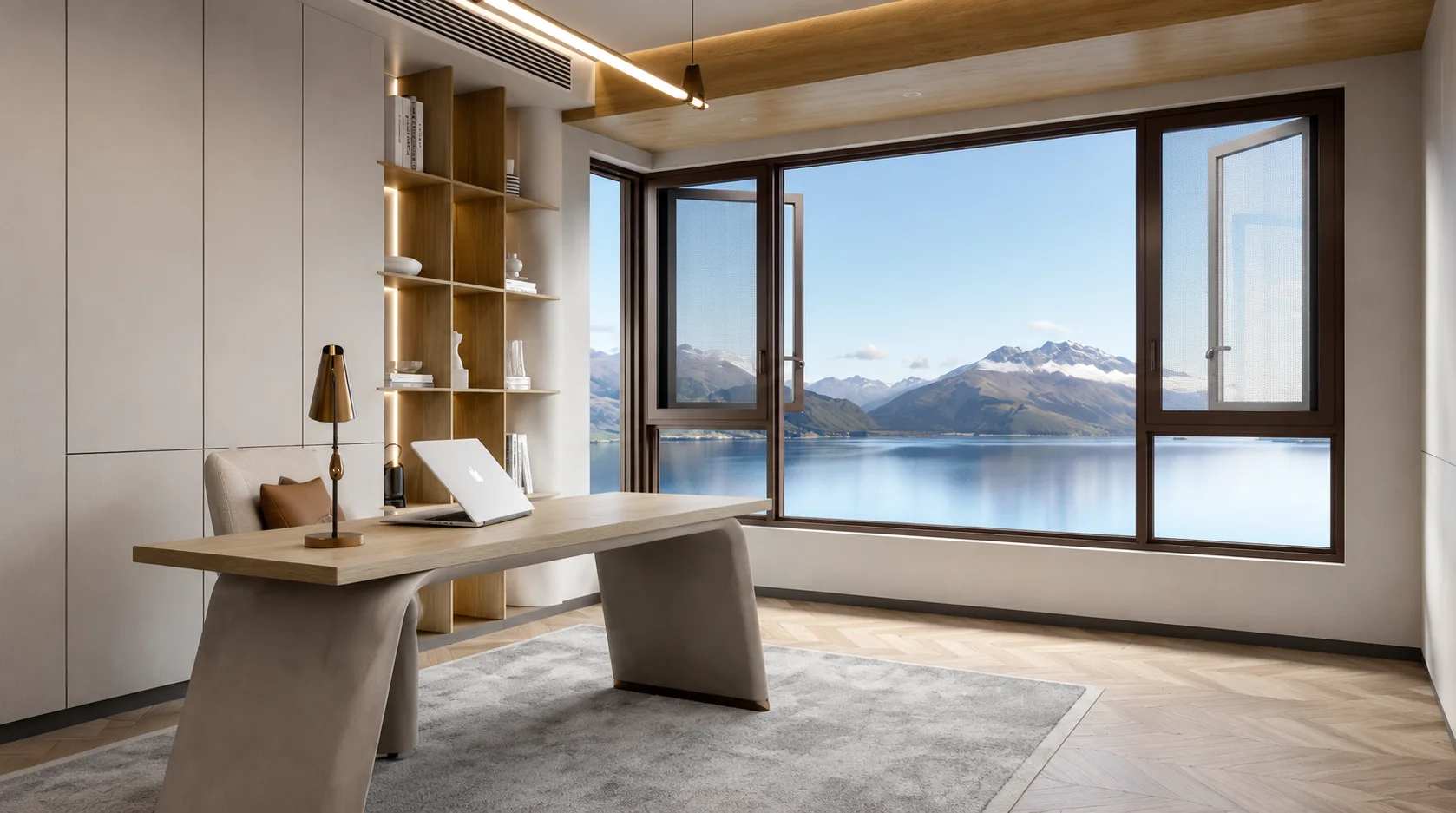

109 Awning Window / Application 101 / 03
Air permeability
0.3 m³/(m·h)
Wind pressure resistance
5.0 kPa
Sound insulation
35 dB
U-factor
0.35 · catalogue value
Opening methods
Reference diagrams
Top-hung
Side-hung
Outward-opening top-hung
Hand-cranked top-hung
