Water tightness
450 Pa
138 · Shanhui
Panoramic Sliding Door

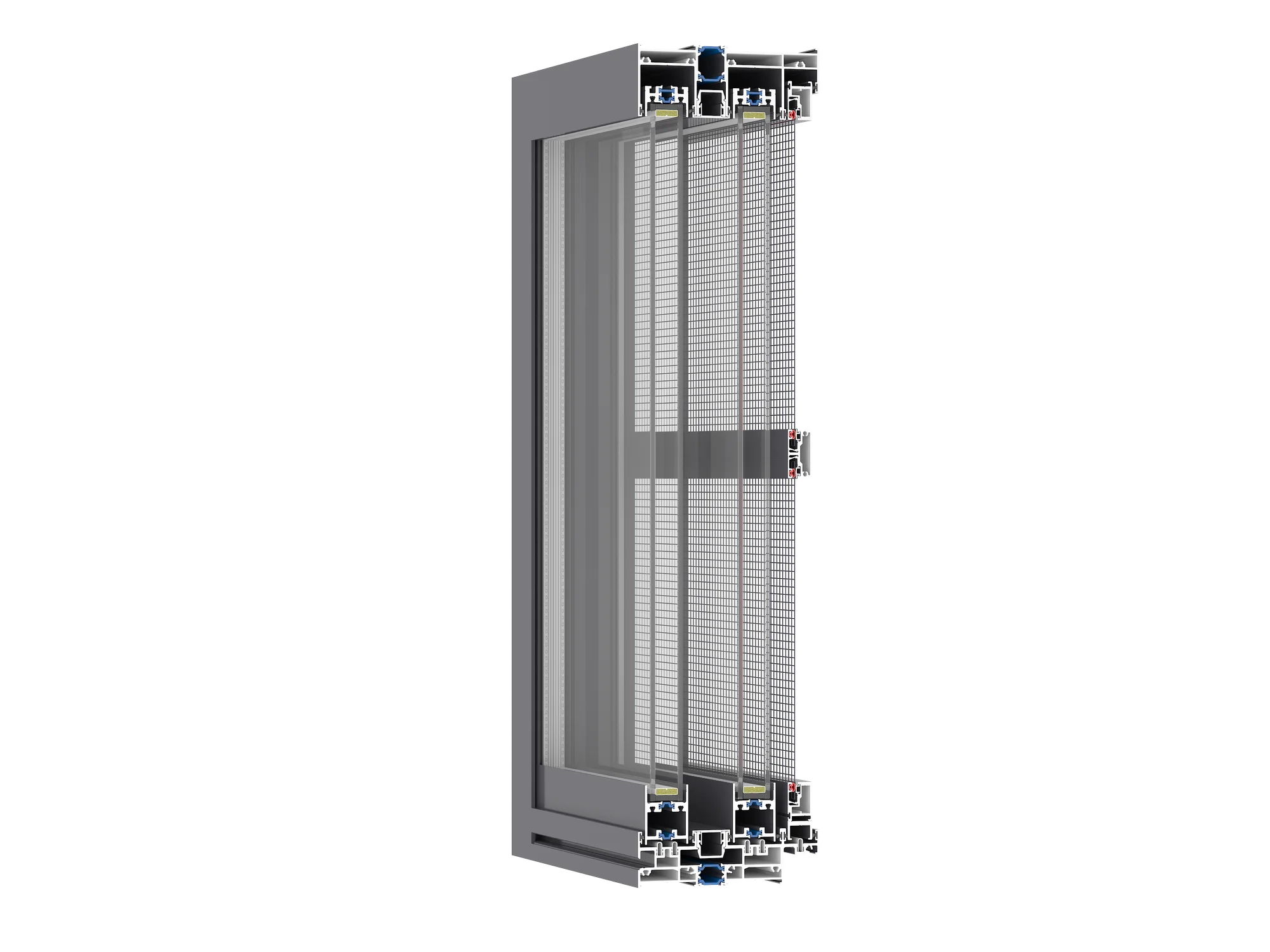

A thermally broken panoramic sliding system that combines broad glazed openings with an integrated insect-screen configuration.
Custom colours can be matched to recognised international colour systems for project orders.
Four standard colours04 finishes
- Textured Black
- Deep Autumn Brown
- Light Ink Grey
- Soft Ivory
Product family
Doors
Opening
Sliding
System
Thermal break
Applications
Residential / Large openings
Technical summary
Product configuration and performance
- Aluminium grade
- 6063-T5 aluminium profile
- Profile wall thickness
- 2.2–3.0 mm
- Frame depth
- Two-track 138 mm · three-track 221 mm
- Surface finish
- Powder coating
- Glass configuration
- 5 mm + 20A + 5 mm
Product highlights

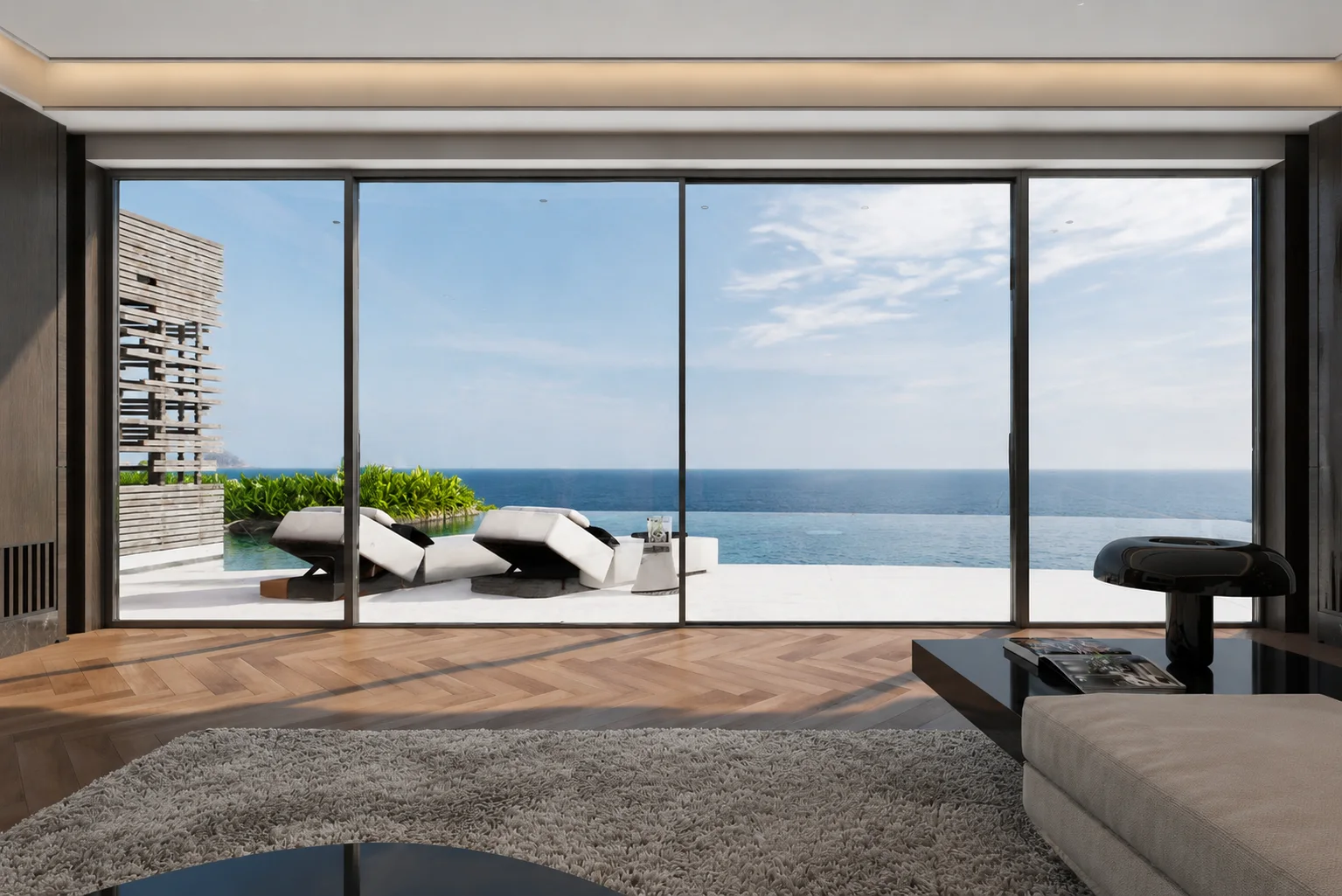

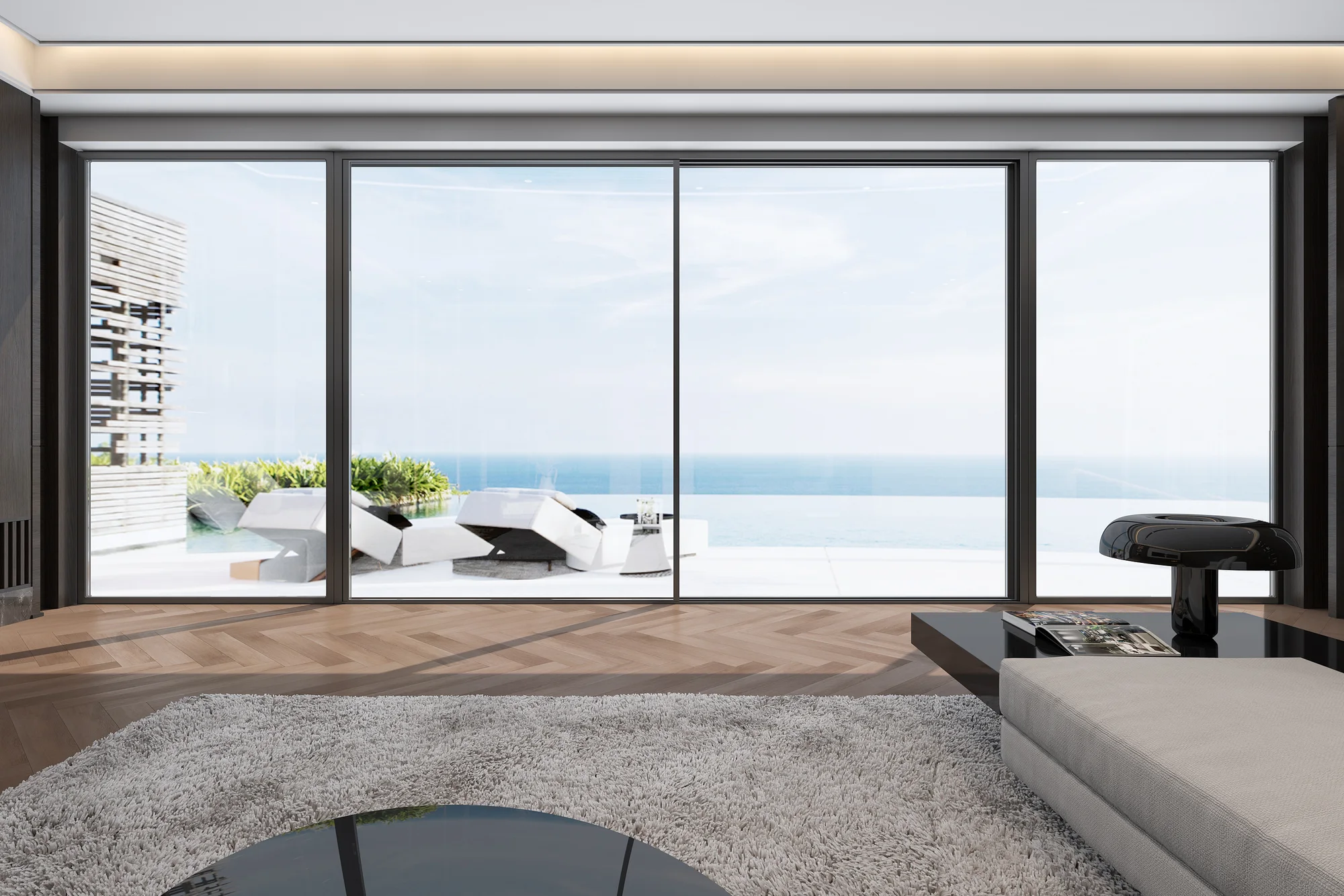

138 Panoramic Sliding Door / Application01 / 02
Air permeability
4.5 m³/(m·h)
Wind pressure resistance
5.0 kPa
Sound insulation
30 dB
U-factor
0.35
Opening methods
Reference diagrams
Two-track sliding
Three-track sliding
